500 gallon Trailer Field Sprayer-SpringRide Boom
F500S Series

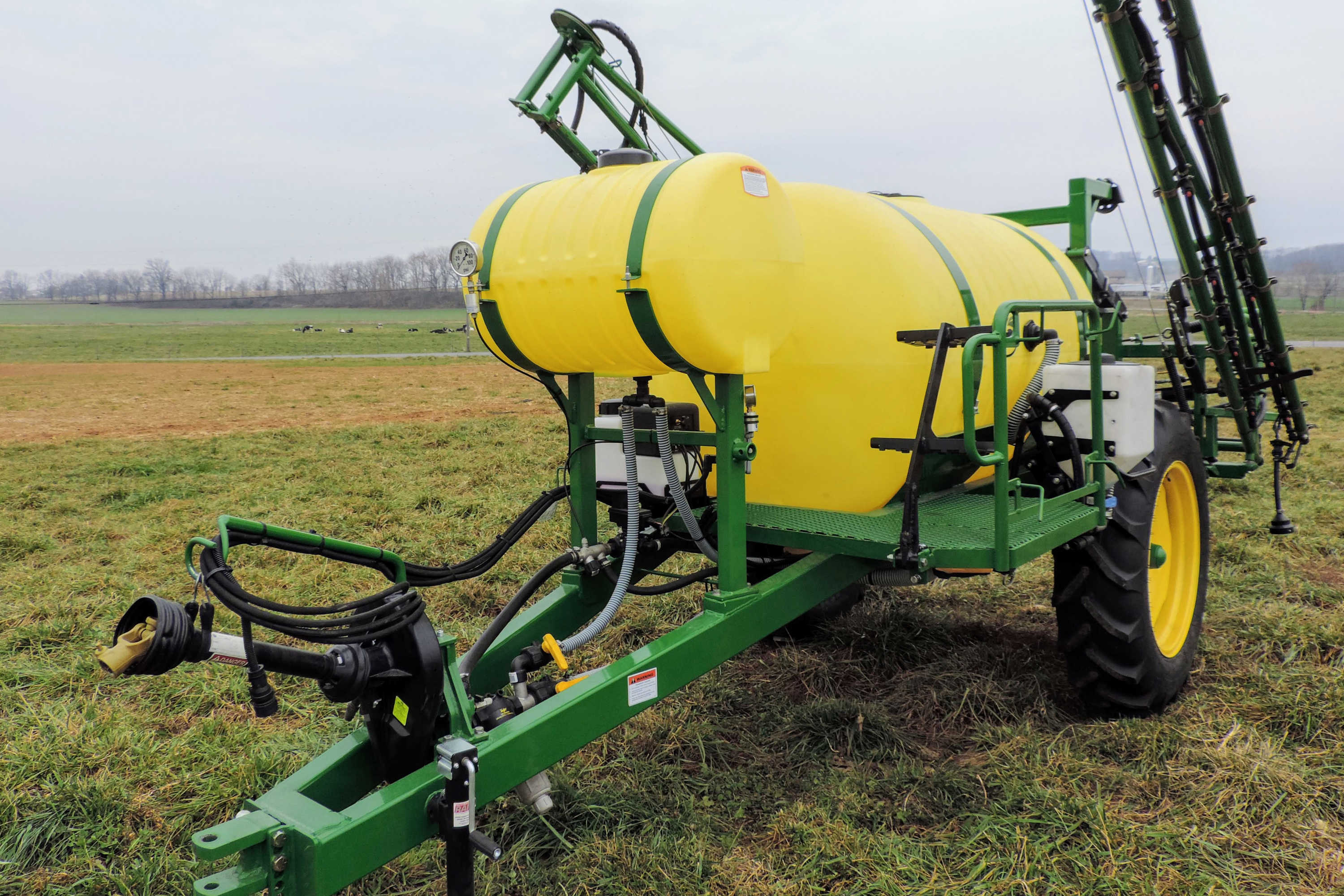

500 gal. trailer field sprayer with adjustable hitch. Axle spacing is adjustable from 66-90".
12.4-28 tall tires standard.
Heavy-duty fully welded frame is coated with automotive primer and paint.
SpringRide hydraulic booms in 35' and 45' widths. AIXR Teejet air-induction tips with no-drip nozzle bodies.
Optional 10-gal. foam marker, 55-gal. rinse system, and induction tank.
Options
5 gal. Induction Tank with Lift
5 gallon Induction Tank is a simple and clean way to mix powder and liquid chemicals to the tank. The lift has gas cylinders to tuck it neatly into storage.
55 Gallon Rinse System
55 gallon rinse system carries enough fresh waster to flush the sprayer and extra water to clean strainers.
12volt-Power Wash-Jug rinse
The Power Wash System includes a 25' hose powered by a 12V pump suppling clean water from the rinse tank and a jug rinse in the induction tank.
2 in Quik Fill
The 2 in quick fill lets you connect your nurse tank or pump to fill the sprayer and rinse tank in record time.
Richway Foam Marker - 10 gal.
Richway foam markers work great for booms from 30-75' wide. 10 gallon capacity has approximately 6 hours of foam.
Pumps
Ace Belt-drive PTO Pump - 150 Series
Ace 150 series belt-drive PTO centrifugal pump is an excellent pump for large sprayers. 120 PSI max, 110 GPM.
Ace Hyd-drive Centrifugal Pump - 150 Series
Ace 150 series hyd-drive centrifugal pump is an excellent pump for large sprayers. 120 PSI max, 110 GPM.
Hypro 1700XL Cast 5-roller Pump
Hypro 1700XL Silver Series 5-roller pump is an economical roller pump for entry level sprayers. 100 PSI max, 21 GPM
Hypro 1700C Cast 5-roller Pump
Hypro 1700C cast 5-roller pump is an economical roller pump for entry level sprayers. 100 PSI max, 21 GPM
Controls
RateKing Auto Rate Control
RateKing automatic rate control works with 3 or 5 section 430 Teejet ball valves.
Choose the right sprayer to protect your crops.
All Iva sprayers are built to last. Heavy-duty welded frames and booms provide many season's of reliable use. 1-year warranty.
Base Model
- 500 gal. Trailer Frame
- 45' SpringRide Boom
- AIXR nozzles at 20" spacing
- Ace 150 PTO Centrifugal Pump
- EC500 Electric Control
$20,844
#4873
Standard Model
- 500 gal. Trailer Frame
- 45' SpringRide Boom
- AIXR nozzles at 20" Spacing
- Ace 150 PTO Centrifugal Pump
- EC500 Electric Control
- 55 gal Rinse Tank with Rinse Nozzle
- 10 gal. Richway Foam Marker
- 2" Quick Fill
- Road Lights
$24,254
#4874
Loaded Model
- 500 gal. Trailer Frame
- 45' SpringRide Boom
- AIXR nozzles at 20/30" Spacing
- Ace 150 PTO Centrifugal Pump
- RateKing Auto Rate Control
- Induction Tank
- 55 gal. Rinse Tank with Rinse Nozzle
- 10 gal. Richway Foam Marker
- 2" Quick Fill
- Field and Road Lights
$28,874
#4875
