300 gallon 3-point Hitch Sprayer with 30' manual-fold booms
300 gallon 3-point Hitch Mounted Sprayer with 30' manual-fold booms
300 gallon 3-point Hitch Crop Sprayer with PTO Pump
300 gallon 3-point Hitch Sprayer
300 gallon 3-point Hitch Sprayer with Foam Marker
300 gallon 3-point Hitch Sprayer with 30' manual-fold booms
300 gallon 3-point Mounted Sprayer with 30' manual-fold booms

300 gallon 3-point Hitch Sprayer, Manual-fold

HT300M Series

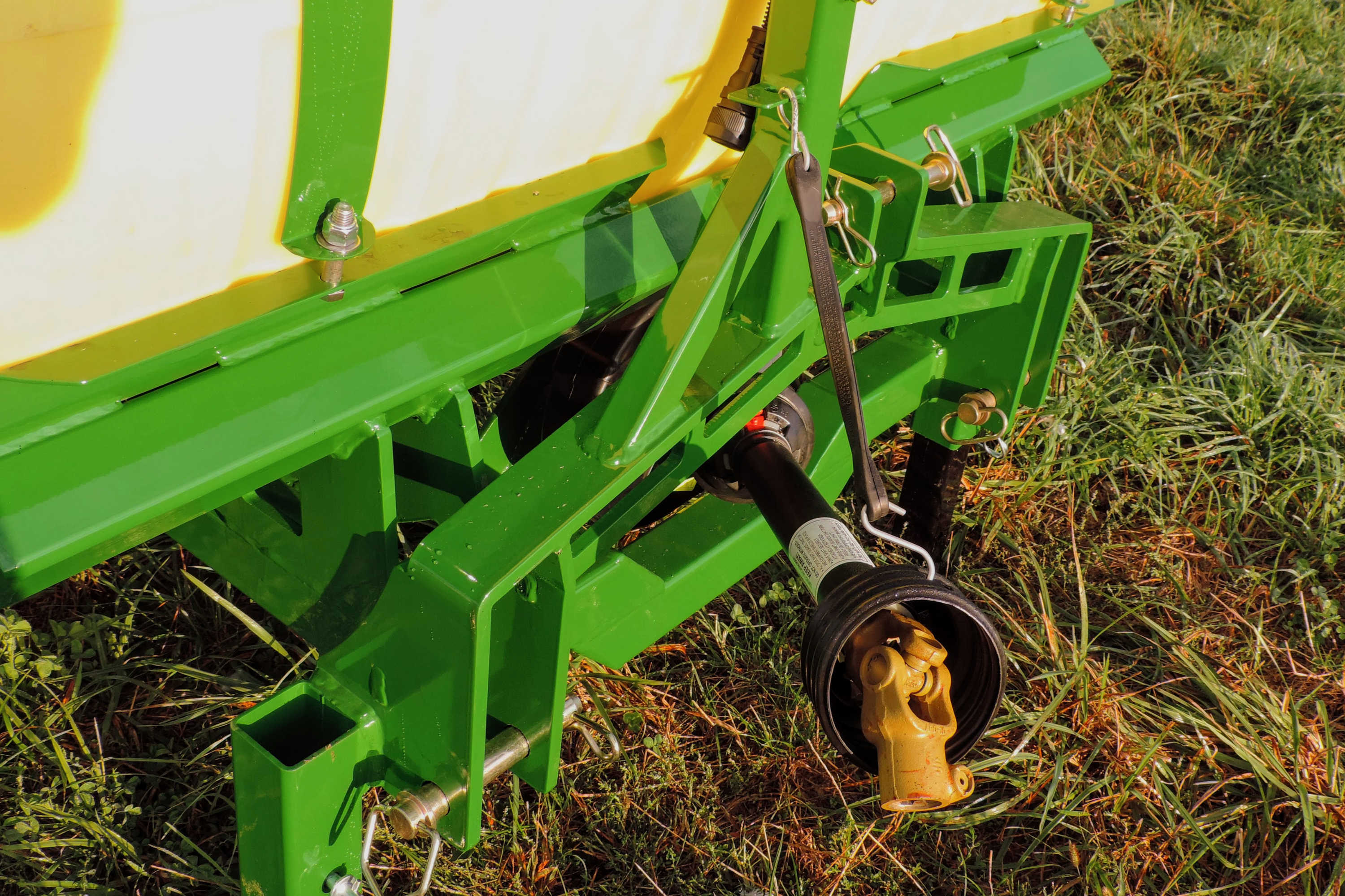

300 gal. 3-point hitch sprayer comes with Cat 2 hitch. Compatible with most industry-standard quick hitches. Retractable feet for easy storage.

Heavy-duty fully welded frame is coated with automotive primer and paint.

Manual-fold booms in 30' and 40' widths. AIXR Teejet air-induction tips with no-drip nozzle bodies.

Optional 5-gal. foam marker and 15-gal. rinse tank.

See Pricing

Options

15 gal. Rinse Tank - 3-point

15 gal. rinse tank holds fresh water to rinse clogged strainers and has a hand wash valve. When the spray job is complete rinse the entire sprayer in the field.

Iva Foam Marker - 5gal.

Iva foam markers work great for booms from 20-40' wide. 5 gallon capacity has approximately 2.5 hours of foam time.

Pumps

Hypro 7700C Cast 7-roller Pump

Hypro 7700C cast 7-roller pump is an econamical roller pump for entry level sprayers. 100 PSI max, 13GPM

Hypro 7700XL Silver Series 7-roller Pump

Hypro 7700XL Silver Series 7-roller pump is an excellent roller pump for entry level sprayers. 100 PSI max, 13GPM

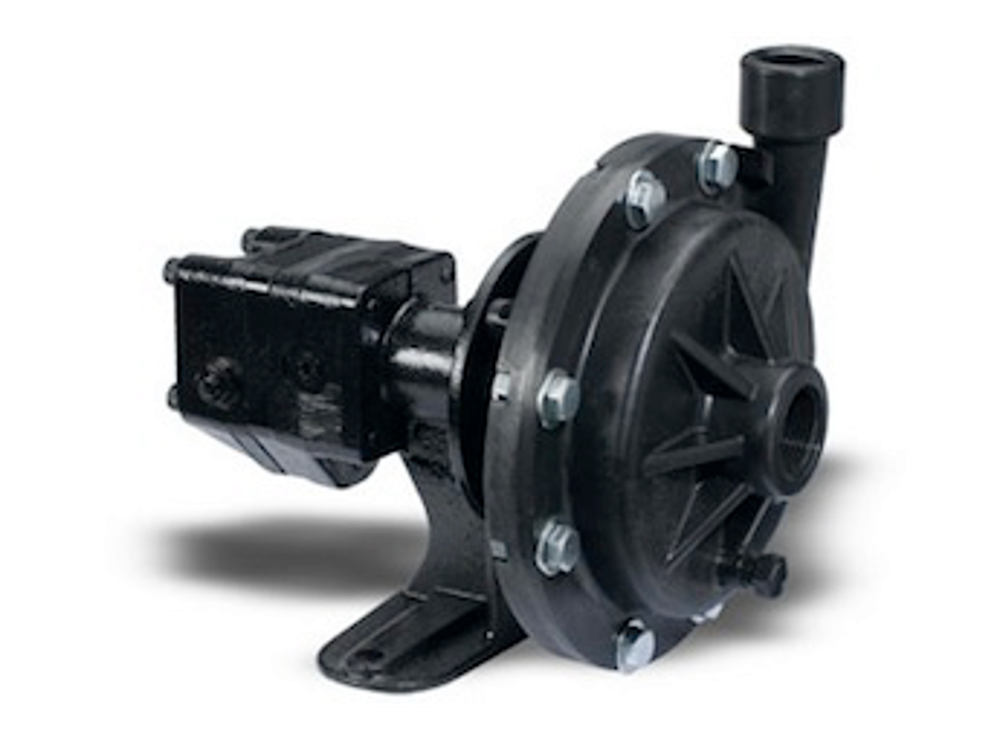

Ace Hyd-drive Centrifugal Pump - 75 Series

Ace 75 series hyd-drive centrifugal pump is an excellent pump for medium size sprayers. 120 PSI max, 110 GPM.

Controls

Manual Control

Manual control are simple reliable way of controlling boom sections and pressure. Master valve to turn off all section at once. Available from 1 to 5 sections.

RC-2 Remcor Control

RC-2 Remcor electric control with 3-section solonoid valves.

Choose the right sprayer to protect your crops.

All Iva sprayers are built to last. Heavy-duty welded frames and booms provide many season's of reliable use. 1-year warranty.

Base Model

  • 300 gal. 3-point Frame
  • 30' manual-fold boom
  • AIXR nozzles at 20" spacing
  • 7-roller Hypro pump,cast iron
  • 3-section manual control
$6,016

#4886

Standard Model

  • 300 gal. 3-point Frame
  • 30' Manual-fold boom
  • AIXR nozzles at 20" Spacing
  • 7-roller Hypro pump, Silver Series
  • 3-section manual control
  • 5 gal. Iva Foam Marker
$7,676

#4887

Loaded Model

  • 300 gal. 3-point Frame
  • 30' Manual-fold boom
  • AIXR nozzles at 20/30" Spacing
  • 7-roller Hypro pump, Silver Series
  • 3-section Remcor control - 12V valves
  • 5 gal. Iva Foam Marker
$8,376

#4888

Contact Sales for Availability and Shipping
