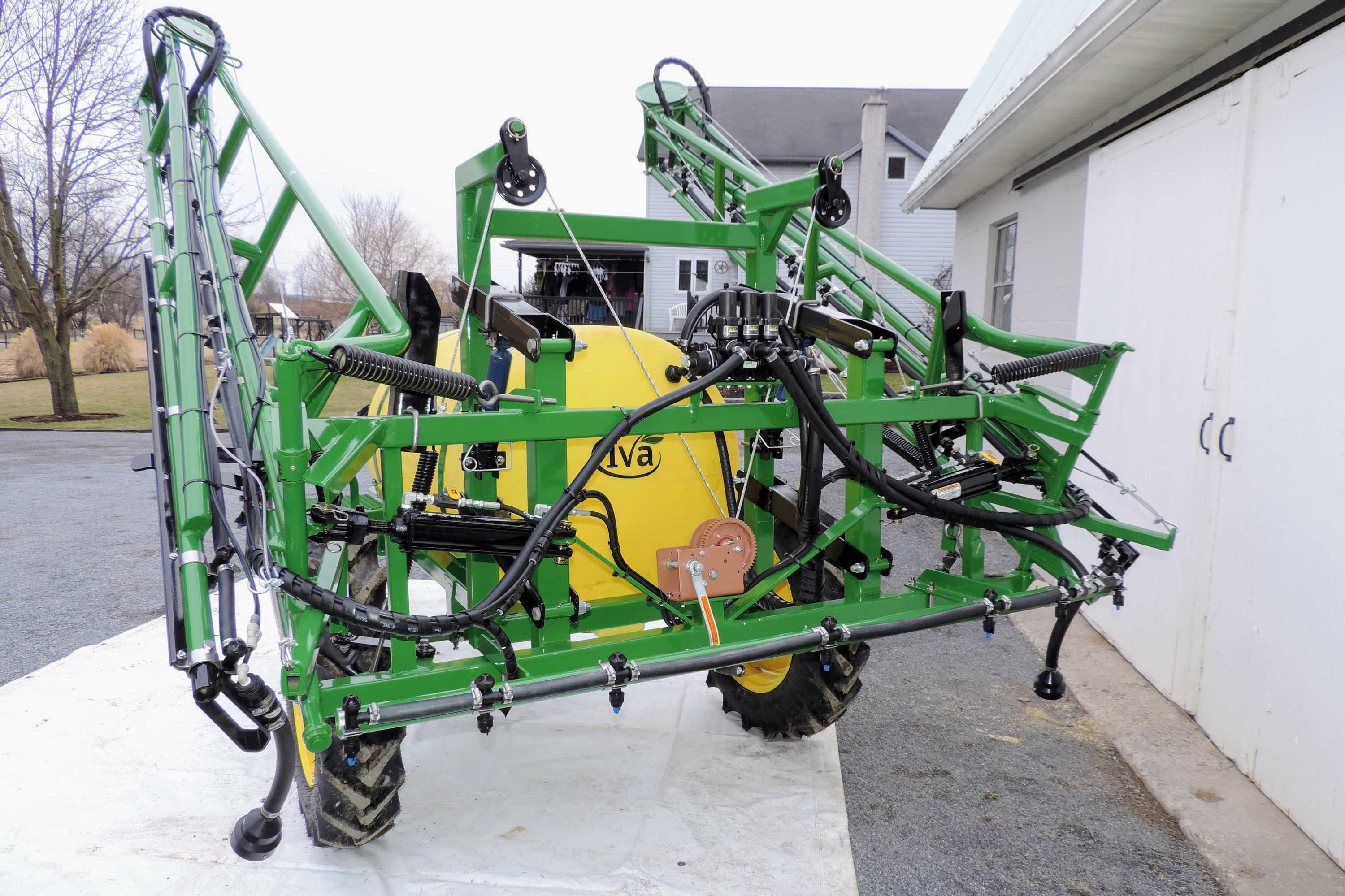

300-gallon Trailer Field Sprayer with 45' Hydraulic-fold Booms
300-gallon Field Sprayer with 45' Hydraulic-fold Booms
300-gallon Field Sprayer with PTO pump and rinse tank
300-gallon Trailer Crop Sprayer with 45' Hydraulic-fold Booms behind tractor
300-gallon Crop Sprayer with 45' Hydraulic-fold Booms
300-gallon Pull Type Sprayer with 45' Hydraulic-fold Booms
300-gallon Pull Type Crop Sprayer with 45' Hydraulic-fold Booms

300 gallon Trailer Field Sprayer, Hyd booms

F300S Series

300 gal. trailer field sprayer with adjustable hitch. Axle spacing is adjustable from 60-80".

11L impliment tires standard. 9.5-25 tall tires are optional.

Heavy-duty fully welded frame is coated with automotive primer and paint.

SpringRide hydraulic booms in 35' and 45' widths. AIXR Teejet air-induction tips with no-drip nozzle bodies.

Optional 10-gal. foam marker and 15-gal. rinse tank.

See Pricing

Options

15 gal. Rinse Tank-trailer

15 gal. rinse tank holds fresh water to rinse clogged strainers and has a hand wash valve. When the spray job is complete rinse the entire sprayer in the field.

5 gal. Induction Tank

5 gallon Induction Tank is a simple and clean way to mix powder and liquid chemicals to the tank.

Road Lights

Road lights are essencial for safe road transport at dark and on busy highways.

Richway Foam Marker - 10 gal.

Richway foam markers work great for booms from 30-70' wide. 10 gallon capacity has approximately 6 hours of foam.

Pumps

Ace Belt-drive PTO Pump - 150 Series

Ace 150 series belt-drive PTO centrifugal pump is an excellent pump for large sprayers. 120 PSI max, 110 GPM.

Ace Hyd-drive Centrifugal Pump - 150 Series

Ace 150 series hyd-drive centrifugal pump is an excellent pump for large sprayers. 120 PSI max, 110 GPM.

Hypro 1700C Cast 5-roller Pump

Hypro 1700C cast 5-roller pump is an economical roller pump for entry level sprayers. 100 PSI max, 21 GPM

Hypro 1700XL Cast 5-roller Pump

Hypro 1700XL Silver Series 5-roller pump is an economical roller pump for entry level sprayers. 100 PSI max, 21 GPM

Controls

Manual Control

Manual control are simple reliable way of controlling boom sections and pressure. Master valve to turn off all section at once. Available from 1 to 5 sections.

EC500 Electric Control

EC500 Electric control works with 3 or 5 section 430 Teejet ball valves.

RateKing Auto Rate Control

RateKing automatic rate control works with 3 or 5 section 430 Teejet ball valves.

Choose the right sprayer to protect your crops.

All Iva sprayers are built to last. Heavy-duty welded frames and booms provide many season's of reliable use. 1-year warranty.

Base Model

  • 300 gal. Trailer Frame
  • 45' SpringRide Boom
  • AIXR nozzle at 20" spacing
  • 5-roller Hypro pump,cast iron
  • 3-section manual control
$12,934

#4876

Standard Model

  • 300 gal. Trailer Frame
  • 45' SpringRide Boom
  • AIXR nozzles at 20" Spacing
  • Ace 150 PTO Centrifugal Pump
  • EC500  Electric Control
  • 10 gal. Richway Foam Marker
$20,994

#4877

Loaded Model

  • 300 gal. 3-point Frame
  • 45' SpringRide Boom
  • AIXR nozzles at 20/30" Spacing
  • Ace 150 PTO Centrifugal Pump
  • RateKing Auto Rate Control
  • 10 gal. Richway Foam Marker
  • 15 gal. Rinse Tank
Call
Contact Sales for Availability and Shipping
