Horse-drawn Sprayers
Horse Drawn Spray Equipment is used for various applications in farming, from the acre produce patch,to the hundred acre crop farmer. We offer tank sizes that range from 55 to 300 gallon. Frame configurations include low ground clearance for easy fill up, or high clearance to straddle sweet corn and tomatoes.

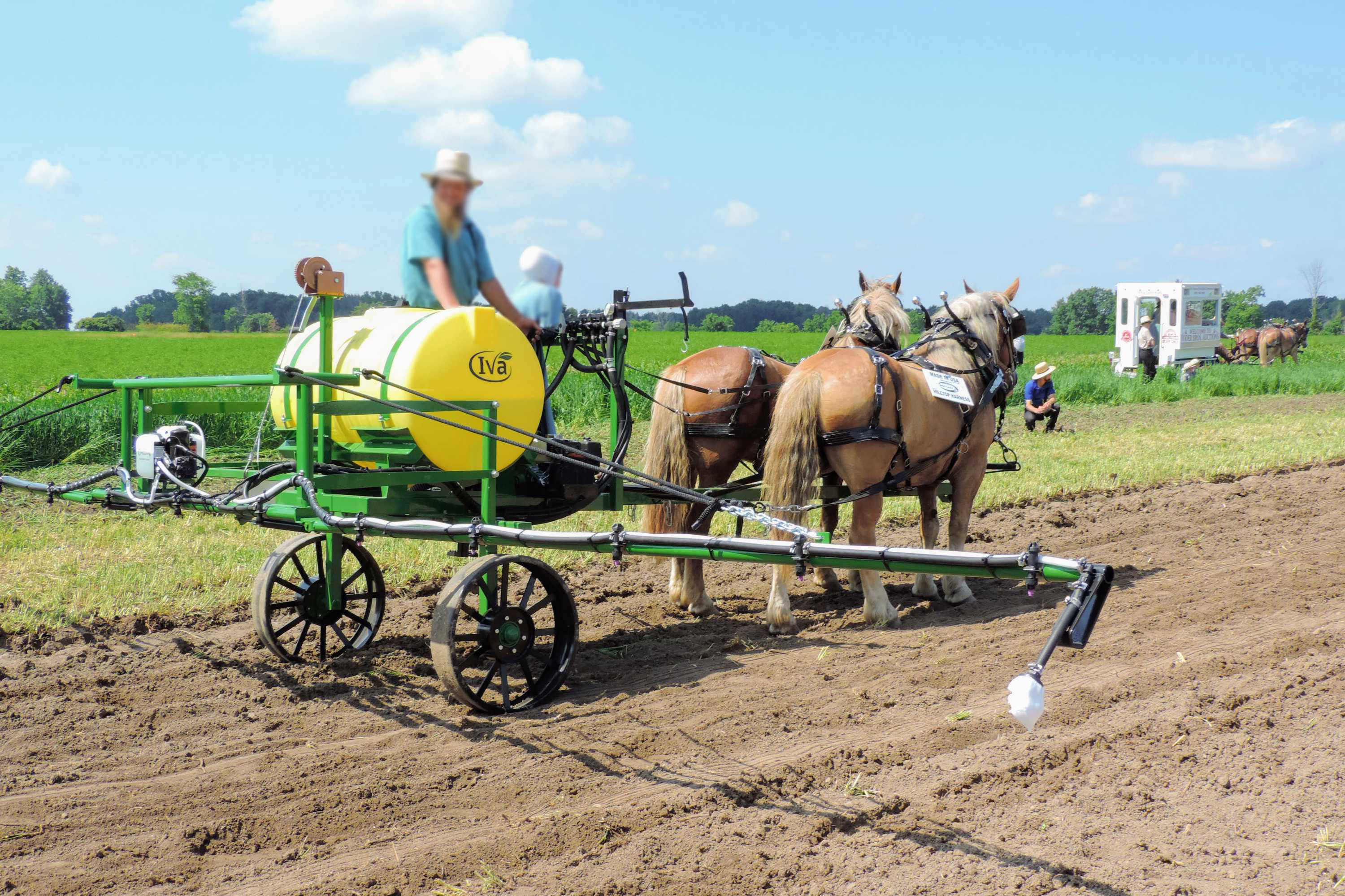

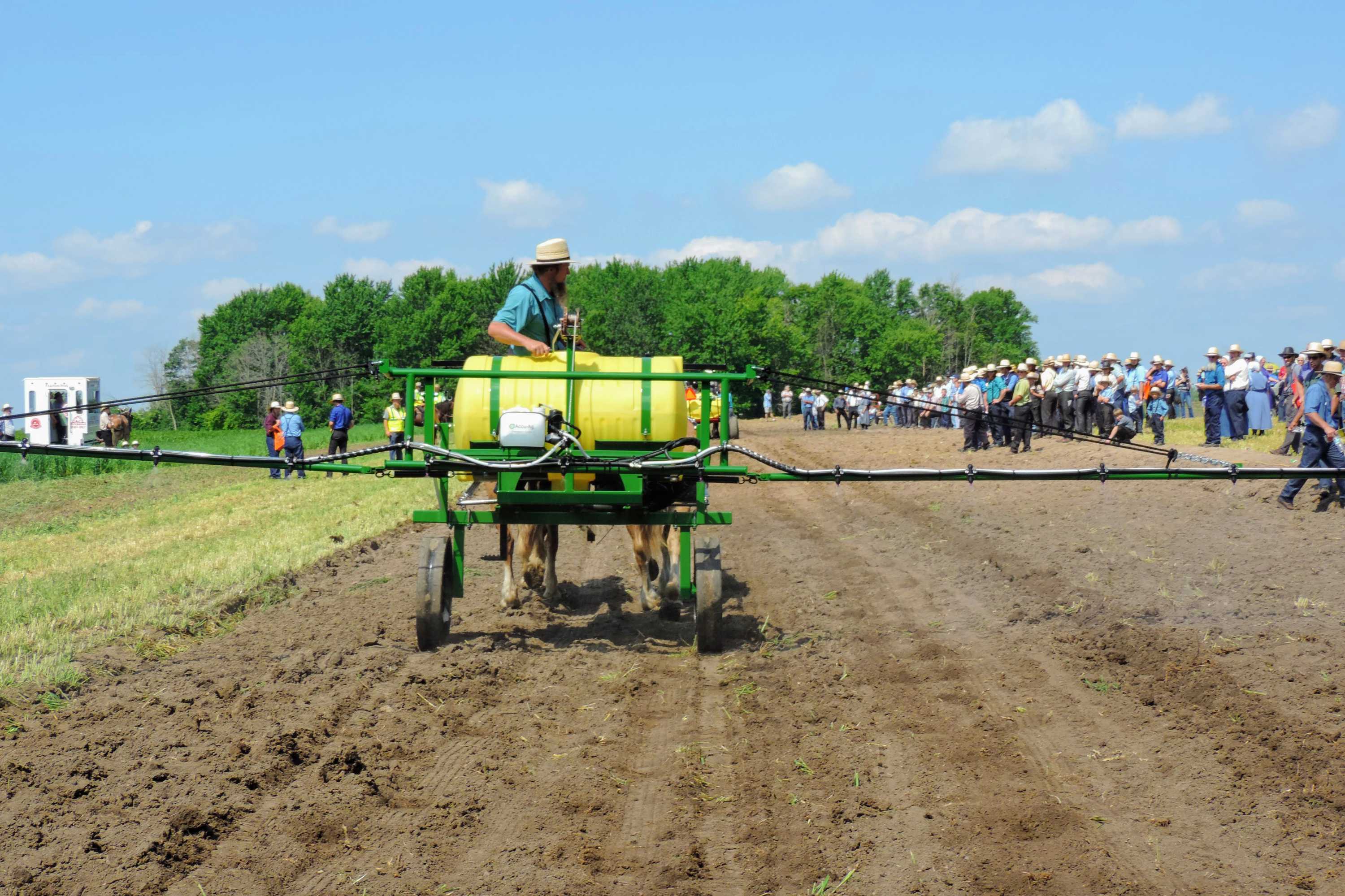

Horse-drawn Tongue Sprayer
FT150 Series
Hitch 2 horses to this tongue sprayer. Great for spraying corn up to 24" tall and all other field crops.
Booms are available in 30' and 40' width.
Winch lift provides 24-90" of boom clearance to spray everything from alfalfa to corn.
- 150 gal tank
- Hypro roller pump or Ace centrifugal pump
- 3-section control
Options;
- Foam markers
- Ground-drive pump
Single-horse Produce Sprayer
FS55 Series
Hitch 1 horse to this produce sprayer. Great for spraying sweet corn, staked tomatoes and peppers, and other produce. The unique offset axle has 80" of clearance.
20' total spray width; 15' single boom.
Winch lift provides 24-90" of boom clearance.
- 55 gal tank
- John Blue diaphragm pump
- High-pressure controls
High Clearance Horse-drawn Sprayer
FW200-300 Series
Hitch 2 horses to this tongue sprayer. Great for spraying corn up to 24" tall and all other field crops.
Booms are available in 45' and 60' width.
Hydraulic or winch lift provides 24-90" of boom clearance to spray everything from vine crops to sweet corn.
- 200 or 300 gal. tank
- John Blue diaphragm pump
- Up to 5-section control
Options;
- Foam markers
- Ground-drive pump
Horse-drawn Trailer Sprayers
F150E - Series
Hitch 2 horses to forecart tow the trailer sprayer in the field.
- 150 gal tank
- Hypro roller pump or Ace centrifugal pump
- 3 to 5-section controls
- Boomless nozzles widths; 45' and 60'
- Manual folding boom widths; 30' and 40'
- Hydraulic booms widths; 35', 45', and 60'
Options;
- Foam markers
- Pump to load from pond
- Rinse tank
Horse-drawn Trailer Produce Sprayers
FP150E - FP300E Series
Hitch 2 horses to this tongue sprayer. Great for spraying corn up to 24" tall and all other field crops.
Booms are available in 30' and 40' width.
Winch lift provides 24-90" of boom clearance to spray everything from alfalfa to corn.
- 150 gal tank
- Hypro roller pump or Ace centrifugal pump
- 3-section control
Options;
- Foam markers
- Ground-drive pump
